TMS Infusion Pump TI-820

TMS TI-820 is advanced device use for accurate infusion, It can guarantee the accuracy of the dose rate and work safely when connected into the patient, making it suitable for the liquid flow rate and strict control the dosage,

FEATURES AND BENEFITS

• Universal: Compatible with any brand of IV set of standards.
• Accuracy: High-precision performance
• Easy to use: Intuitive operation system, drug library history record review and last configuration memory, titration function, manual & automatic bolus.
• Safety: Alarm volume adjustable on 9 levels, double CPU makes the process of infusion safer and accu rate, bubble detection with 3 sensitivities.

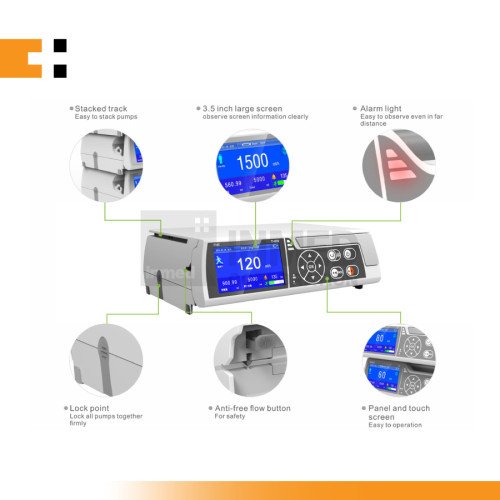

• Features: Smart touch button, TFT oversize touch screen, small and dedicated volume can save massive space,
• Inclusions: User Manual, Power Cord, Fixed Mount

Physical Specifications

• Dimensions (L×W×H): 240 × 175 × 80 mm
• Net Weight: ≤1.8 kg
• Classification: Type CF, Defibrillation-proof, Class I
• Material: Anti-corrosion PBT

Display

• Screen: 3.5" TFT touch color LCD, 16:9
•  Brightness: 1–5 levels adjustable
• Info Display: System time, infusion mode, IV set brand, drugs, battery, infusion status, remaining time, VTBI, flow rate, volume, pressure, alarm
• Modes: Day and night mode (auto switch)

Infusion Sets

• 4 pre-configured brands
• Auto recognition of infusion brands
• Can customize new brands
• New brand calibration possible by manufacturer

Basic Parameters

• Modes: 8 (Rate, VT, R-T, Dose, Trapezia, Intermittent, Loading, Sequence, Relay mode)
• Flow Rate: 0.1–2000 ml/h
• Increment: 0.01 ml/h
• VTBI: 0.1–9999.9 ml (increment 0.01 ml)
• Preset Time: 0.01–999.9 hrs (increment 0.01 hr)
• Accumulated Volume: 0.01–9999.9 ml
• KVO Rate: 0–5 ml/h adjustable, step 0.1 ml/h
• Purge Rate: 0.1–2000 ml/h

Accuracy

• Mechanical: ±0.5%
• Volume: ±5%

Bolus

• Rate: Manual 0.1–2000 ml/h
• Automatic: 0.1–2000 ml/h
• Preset Volume: 0.1–9999.9 ml
• Automatic Volume: 0.1–5.0 ml/h adjustable, step 0.1 ml/h

Safety System

• Pressure: mmHg/kPa selectable
• Occlusion Levels: 3 (L1 quick, L2, L3 slower
• Air Bubble Detection: 15 mm/h, 3 levels (300, 100, 50 μL)
• Anti-bolus: Yes
• Auto reduction of bolus on alarm

Alarm System

• Types: Visual + acoustic
• Alerts: Pump door, upstream pressure, battery empty, bubble, downstream pressure, high pressure, infusion complete, KVO, low volume, external power off
• Reminder Alarm: On/Off
• Alarm Volume: 1–5 levels selectable

Battery

• Charging Time: ≤4 hrs (100% capacity)
• Working Time: ≥6 hrs (at 25 ml/h)

Power Supply

• 100–240V~, 50/60Hz
• DC Power: 10–15V, 2.5A
